FJ12032AB

FJ12032AB

Frame: Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

Impeller: Black plastic PBT UL94V-0

Operation Temperature/Humidity Range: (under unconcretionary state) -30℃ ~ +60℃ (temperature), 0% ~ 95% (himidity)

Protection: Impedance Protected

Withstand Voltage: AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation System: design according to IEC61858 Grade B,

Protection Grade: IP34

With a self-contained electric motor of an output not exceeding 125W.

Shaded Pole Motor Fan FJ12032AB

Technical Parameter

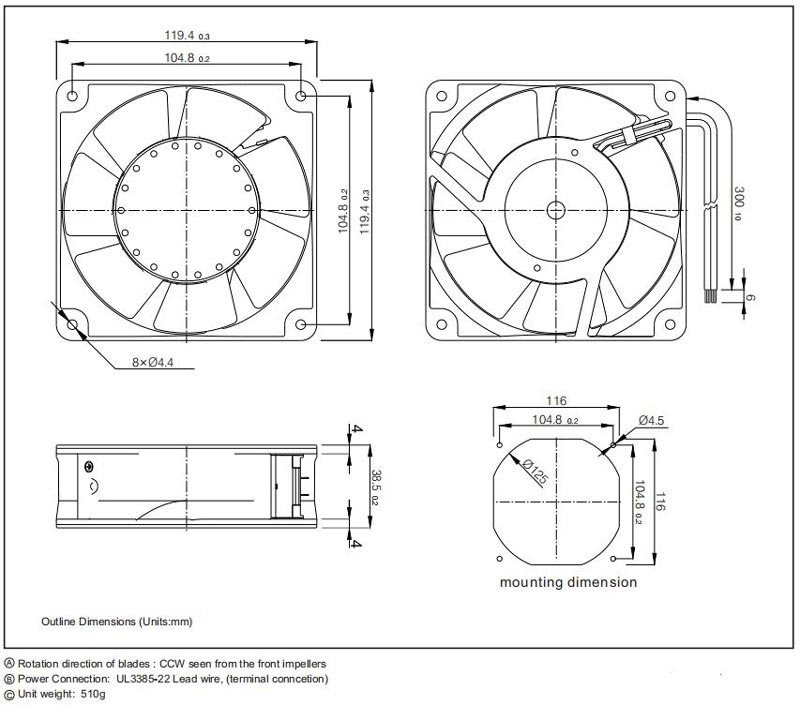

References are based on the frame dimension, which helps you to quickly select the best choice for your installation.

Example:
When your installation space is enough for dimention 120*120*38mm, please choose FJ1203

When you choose AC 220V, frame size 120x120x38mm, sleeve bearing, plug-in connection, please choose model FJ12032AST

We can customize your unconventional products.


Frame
Aluminium alloy die-casting, surfaces is finished by black anti-corrosion treatment.

Impeller
Black plastic PBT UL94V-0

Operation Temperature/Humidity Range: (under unconcretionary state)
-30℃ ~ +60℃ (temperature), 0% ~ 95% (himidity)

Protection
Impedance Protected

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation System
design according to IEC61858 Grade B,

Protection Grade
IP34

Type

Motor

Rated Voltage

Frequency

current

Power

Speed

Max Air Flow

Static Pressure

Noise

Curve

Capacitor Motor

V

Hz

(A)

(W)+10%-20%

(min-1)

CFM

m3/h

(Pa)

(dB)

(μF)

FJ12031AS

M2S6301-SB

115

50

0.24

18

2500

85

145

51

34

-----

60

0.20

15

2800

100

170

63

37

FJ12031AB

M2S6301-AB

115

50

0.24

18

2500

85

145

51

34

-----

60

0.20

15

2800

100

170

63

37

FJ12032AS

M2E6301-SB

230

50

0.12

19

2500

85

145

51

34

-----

60

0.10

14

2700

95

160

63

37

FJ12032AB

M2E6301-AB

230

50

0.12

19

2500

85

145

51

34

-----

60

0.10

14

2700

95

160

63

37

FJ12033AB

M2D6301-AB

380

50

0.07

18

2500

85

145

51

34

-----

60

0.06

16

2800

100

170

63

37
