Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.
Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563
When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225
We can customize your unconventional products.
Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +80 (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Protection Grade
IP44
|
Type |
Motor |
Rated Voltage |
Frequency |
current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise |
Curve |
Capacitor Motor |
|
|
V |
Hz |
(A) |
(W)+10%-20% |
(min-1) |
CFM |
m3/h |
(Pa) |
(dB) |
(μF) |
|||
|

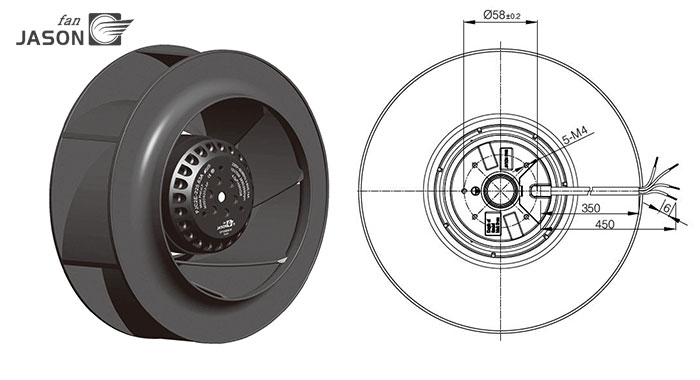

C2E-225.63DS |
M2E9203-DS |
240 |
50 |
0.38 |
92 |
2380 |
635 |
1077 |
485 |
66 |
① |
3.0/450 |
|
50 |
0.37 |
86 |
2220 |
593 |
1005 |
452 |
64 |
② |
||||
